ATEN VS0108HA 8-Port HDMI Splitter (1 in 8 out) Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD, Long distance transmission – up to 15 m (24 AWG)

FEATURE

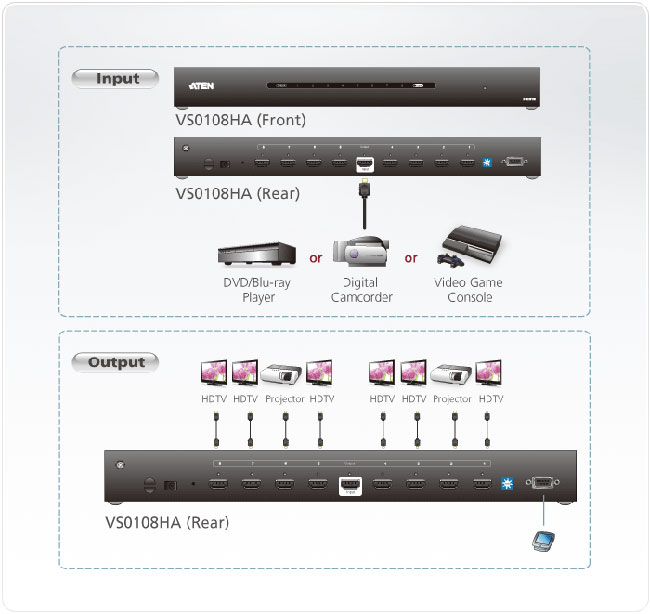

Connects one HDMI source to eight HDMI displays at the same time

HDMI (3D, Deep, Color, 4kx2k); HDCP Compatible

Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD

Features EDID Expert technology :

- EDID Library with default EDID configurations

- Built-in EDID Mode selection

- Copies a display's EDID to the source device

Built-in bi-directional RS-232 serial control port for high-end system control

Supports Dolby True HD and DTS HD Master Audio

Long distance transmission – up to 15 m (24 AWG)

Supports up to 340MHz bandwidth for high performance video

Signaling rates up to 3.4 Gbits

Plug-and-play – no software installation required

SPECIFICATION

Display Connections 8

Connectors Device HDMI In 1 x HDMI Type A Female (Black)

Display HDMI Out 8 x HDMI Type A Female (Black)

Power 1 x DC Jack

LEDs Power 1 (Green)

Input 1 (Green)

Output (1-8) 1 (Green)

Video 4k x 2k, 1080p

Power Consumption DC5V, 14.84W

Environment Operating Temp. 0-50°C

Storage Temp. -20-60°C

Humidity 0–80% RH, Non-condensing

Physical

Properties Housing Metal

Weight 1.74 kg

Dimensions

(L x W x H) 43.72 x 15.78 x 4.40 cm

PACKAGE CONTENTS

1x VS0108HA 8-Port HDMI Splitter

1x Power Adapter

1x Mounting Kit

1x User Instructions
